English

多功能音箱集成拓展塢功能 雙HDMI輸出

XF-A3101A


這款音頻塢可用作多個端口中心和揚聲器電話。它的緊湊設計在家庭辦公室到小型聚會室中占用極少的空間。對于商務旅行，用戶可以輕松地將音頻塢放入包中并帶到任何地方，賦予了任何地方的工作空間。

多通道集線器和揚聲器電話：該音頻塢配備會議控制和揚聲器電話。

4個麥克風：4個麥克風提供自然的聲音和減少背景噪音的功能。

HDMI連接器：可以連接雙顯示器。

藍牙5.2或USB插入即可使用：提供高質量、清晰的音頻。



產品詳情 產品特點 技術參數 包裝細節

這款音頻塢可用作多個端口中心和揚聲器電話。它的緊湊設計在家庭辦公室到小型聚會室中占用極少的空間。對于商務旅行，用戶可以輕松地將音頻塢放入包中并帶到任何地方，賦予了任何地方的工作空間。

多通道集線器和揚聲器電話：該音頻塢配備會議控制和揚聲器電話。

4個麥克風：4個麥克風提供自然的聲音和減少背景噪音的功能。

HDMI連接器：可以連接雙顯示器。

藍牙5.2或USB插入即可使用：提供高質量、清晰的音頻。

數字信號處理技術：


 General

Product Dimensions

L130.6×W130.6×H50(mm)



Product Weights

377g



Packaging Dimensions

L167×W97×H43(mm)



Packaging Weights

547g



Operating Environment

Temperature: 0 to 40 °C           Humidity: 20 to 85% (no condensation)



Storage Environment

Temperature: -20 to +45 °C        Humidity: 10 to 90% (no condensation)



ESD Protection

Contact discharge: ±4kV           Air discharge: ±8kV



Enclosure

ABS+PC , Black, Silver





Compatible app

Compatible with video conferencing apps: Amazon Chime, BlueJeans,

Cisco@, Facebook, Messenger, Google Meet, GoToMeeting, Microsoft

Teams, Skype, Skype for business, Slack, Zoom, etc.





Supported OS

- Windows 11/ 10, /macOS, iOS, Android, or other systems with standard UAC drivers.

- iPhone can only connect by Bluetooth, iPad can connect by Bluetooth and USB-C. Android can connect by Bluetooth or USB-C



Power Sources

USB bus power/ USB-C PD 100 W IN voltage: 5-20V，0-5A



Max.Power Consumption

10W



Standby consumption

<3W




Bluetooth

Version: 5.2

Connection distance: 10M

Bluetooth name: A3101



Warranty

12 Months

Interface

Upstream port

1*USB-C connect to HOST devices



HDMI

2*HDMI2.0(4K/60Hz)，support MST,SST



Peripheral ports

2*USB-A Gen2(10Gbps) ，1*USB-C Gen2(10Gbps)， together 10W ,



RJ45

1000Mbps/100Mbps/10Mbps Ethernet



Power Sources

USB-C PD IN voltage: 5-20V，0-5A

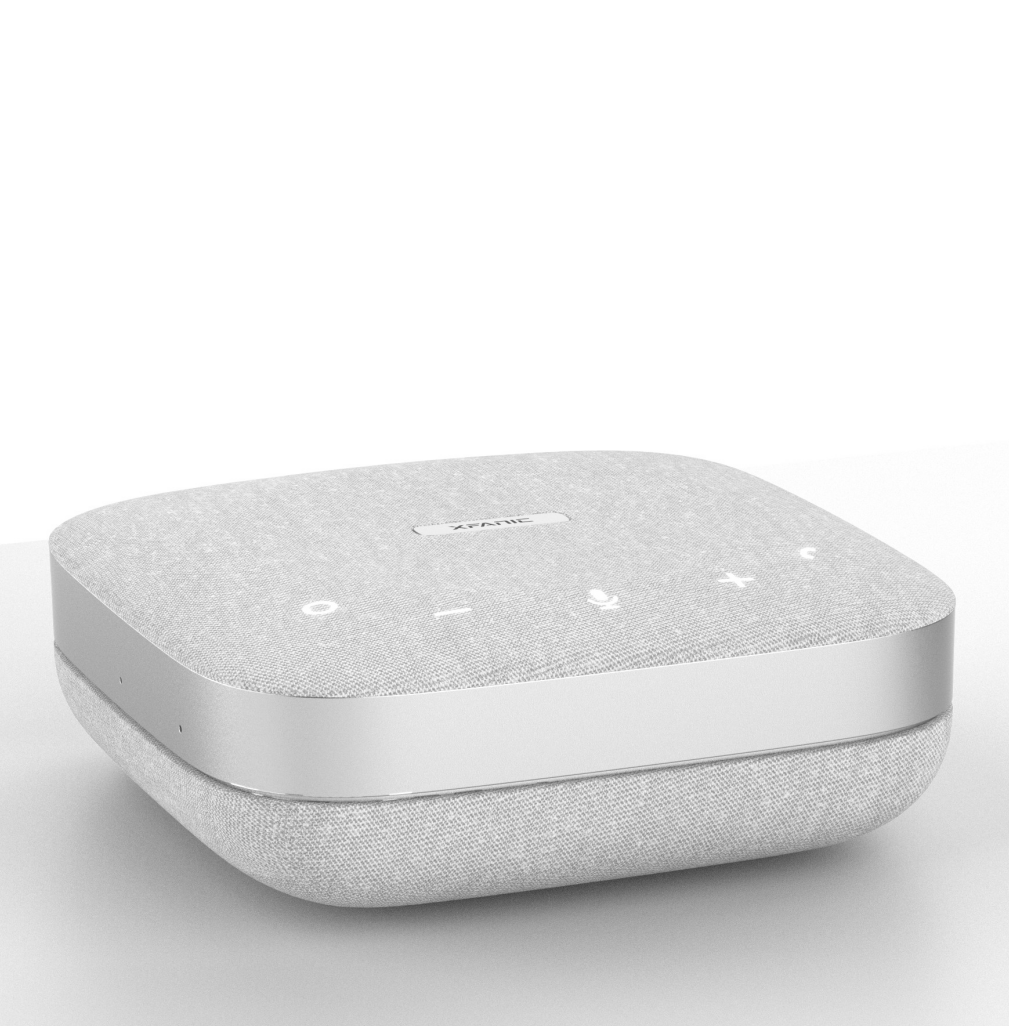

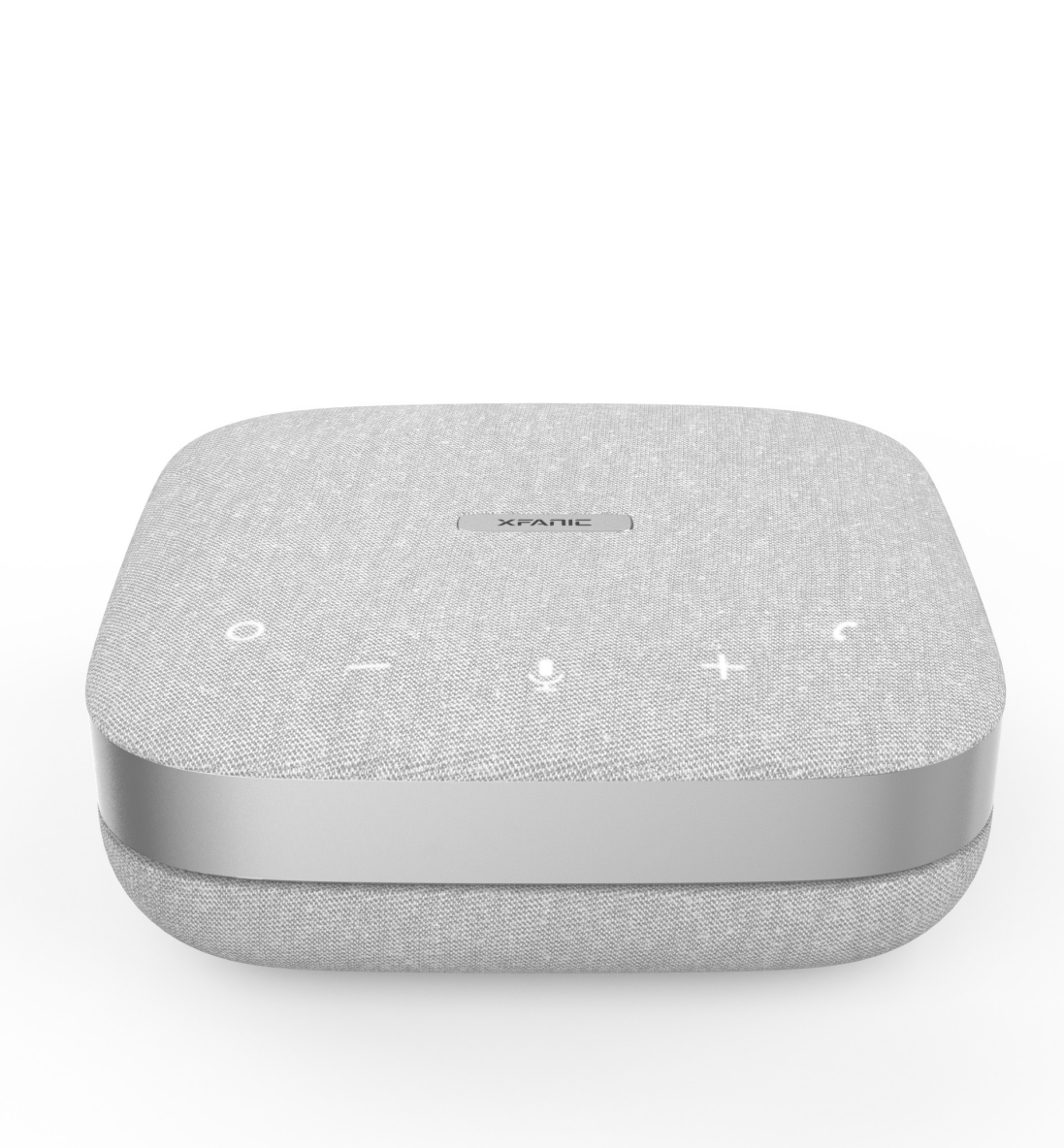

Button



Touch Key



- Volume Up/Down ,

- Microphone Mute/ Unmute ,

- Hang on / off ,

- Bluetooth / USB mode switch.


Audio



Microphone

4* Omni directional ECM Φ6mmx2.7mm ,

360° coverage, Pickup Range: 4M,

 Frequency response: 20Hz-8KHz





Speaker

5W , Full-range speaker x 1

Volume: 85 dB SPL @ 1M

Frequency Bandwidth : 150 Hz to 20,000 Hz



Audio Processing

AEC,ANR,AGC

 General

Product Dimensions

L130.6×W130.6×H50(mm)



Product Weights

377g



Packaging Dimensions

L167×W97×H43(mm)



Packaging Weights

547g



Operating Environment

Temperature: 0 to 40 °C           Humidity: 20 to 85% (no condensation)



Storage Environment

Temperature: -20 to +45 °C        Humidity: 10 to 90% (no condensation)



ESD Protection

Contact discharge: ±4kV           Air discharge: ±8kV



Enclosure

ABS+PC , Black, Silver





Compatible app

Compatible with video conferencing apps: Amazon Chime, BlueJeans,

Cisco@, Facebook, Messenger, Google Meet, GoToMeeting, Microsoft

Teams, Skype, Skype for business, Slack, Zoom, etc.





Supported OS

- Windows 11/ 10, /macOS, iOS, Android, or other systems with standard UAC drivers.

- iPhone can only connect by Bluetooth, iPad can connect by Bluetooth and USB-C. Android can connect by Bluetooth or USB-C



Power Sources

USB bus power/ USB-C PD 100 W IN voltage: 5-20V，0-5A



Max.Power Consumption

10W



Standby consumption

<3W




Bluetooth

Version: 5.2

Connection distance: 10M

Bluetooth name: A3101



Warranty

12 Months

Interface

Upstream port

1*USB-C connect to HOST devices



HDMI

2*HDMI2.0(4K/60Hz)，support MST,SST



Peripheral ports

2*USB-A Gen2(10Gbps) ，1*USB-C Gen2(10Gbps)， together 10W ,



RJ45

1000Mbps/100Mbps/10Mbps Ethernet



Power Sources

USB-C PD IN voltage: 5-20V，0-5A



Button



Touch Key



- Volume Up/Down ,

- Microphone Mute/ Unmute ,

- Hang on / off ,

- Bluetooth / USB mode switch.


Audio



Microphone

4* Omni directional ECM Φ6mmx2.7mm ,

360° coverage, Pickup Range: 4M,

 Frequency response: 20Hz-8KHz





Speaker

5W , Full-range speaker x 1

Volume: 85 dB SPL @ 1M

Frequency Bandwidth : 150 Hz to 20,000 Hz



Audio Processing

AEC,ANR,AGC


Package Included

1*Audio Dock

1*100W 1M USB C TO C cable

1*Manual
